Lab: File path traversal, validation of start of path

This lab contains a path traversal vulnerability in the display of product images.

The application transmits the full file path via a request parameter, and validates that the supplied path starts with the expected folder.

To solve the lab, retrieve the contents of the /etc/passwd file.

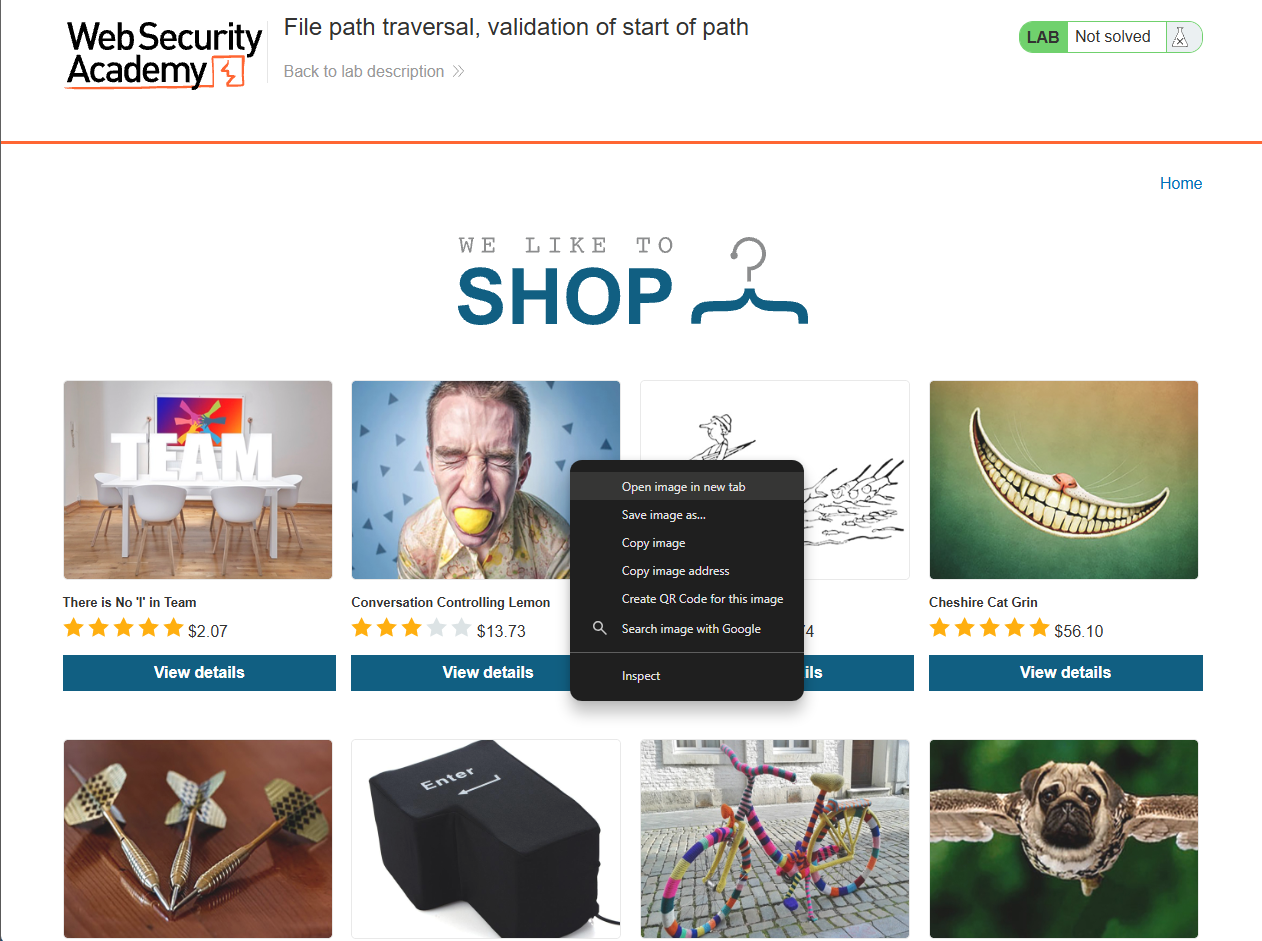

From the main page of the lab, I selected a random item, right-clicked its image, and chose "Open image in new tab."

image-20260724112802235

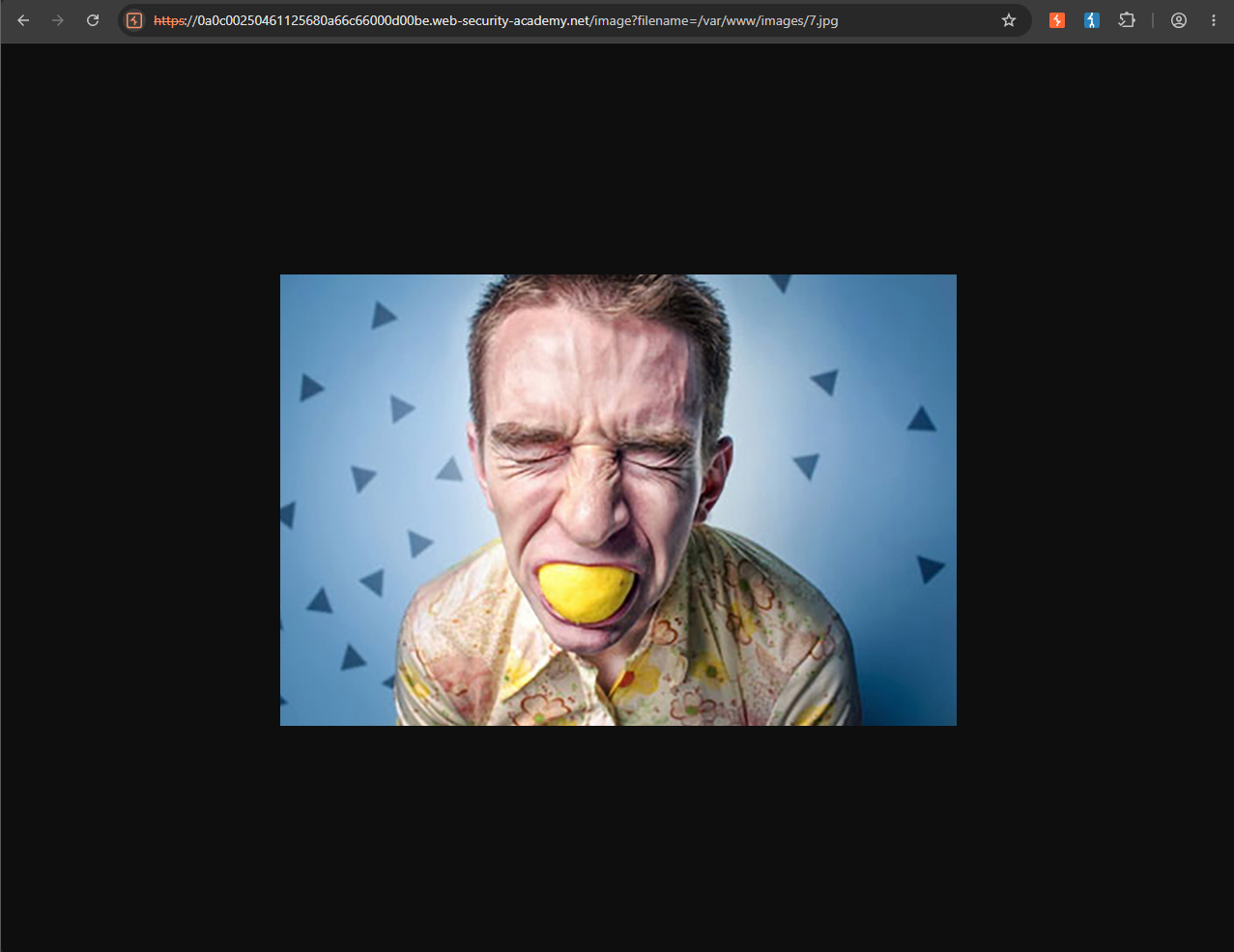

Notice the image URL: 0a0c00250461125680a66c66000d00be.web-security-academy.net/var/www/images/7.jpg. In the previous labs, only the filename (for example, 7.jpg) was required in the filename parameter. However, this lab appears to require the full path to the image, such as /var/www/images/7.jpg.

image-20260724112816293

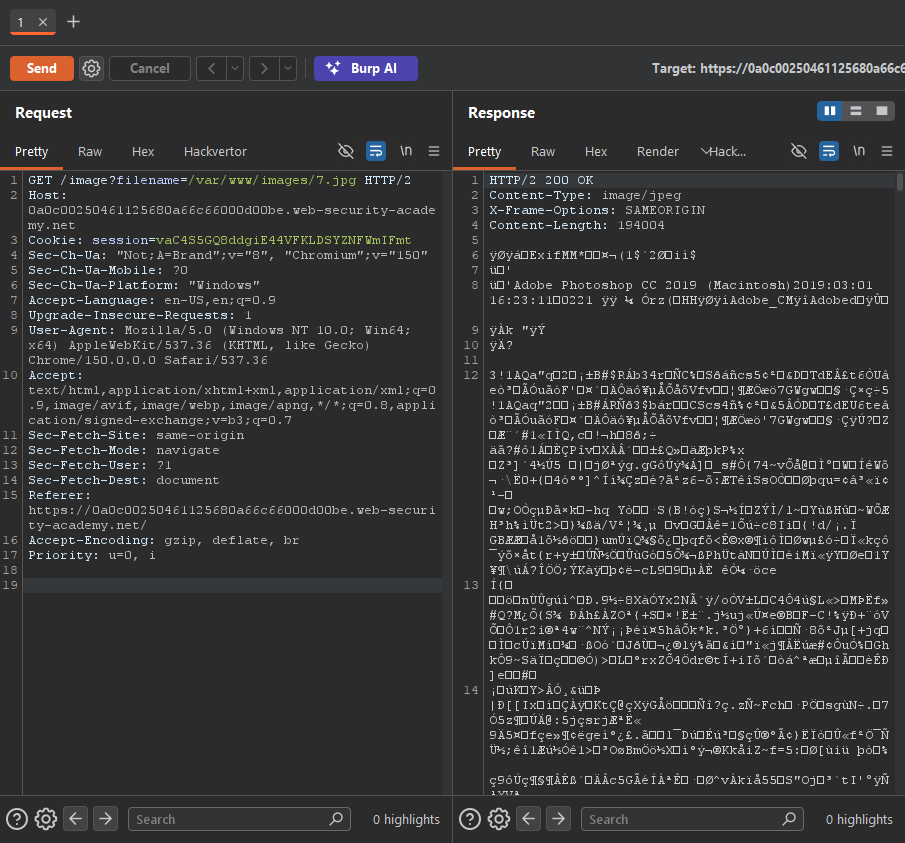

I Intercepted the request and pulled it up in Burp. Notice the server returned the binary data of the image.

image-20260724112924695

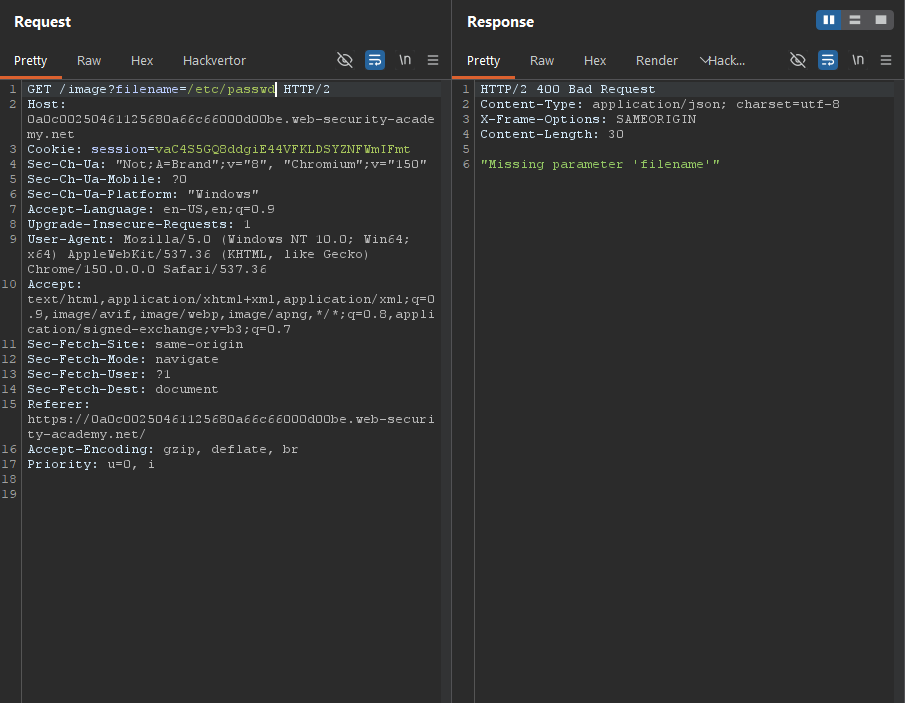

Although I didn't expect it to work, I tried requesting /etc/passwd for testing purposes. Instead of returning the file, the server responded with the error message "Missing parameter 'filename'".

image-20260724113237006

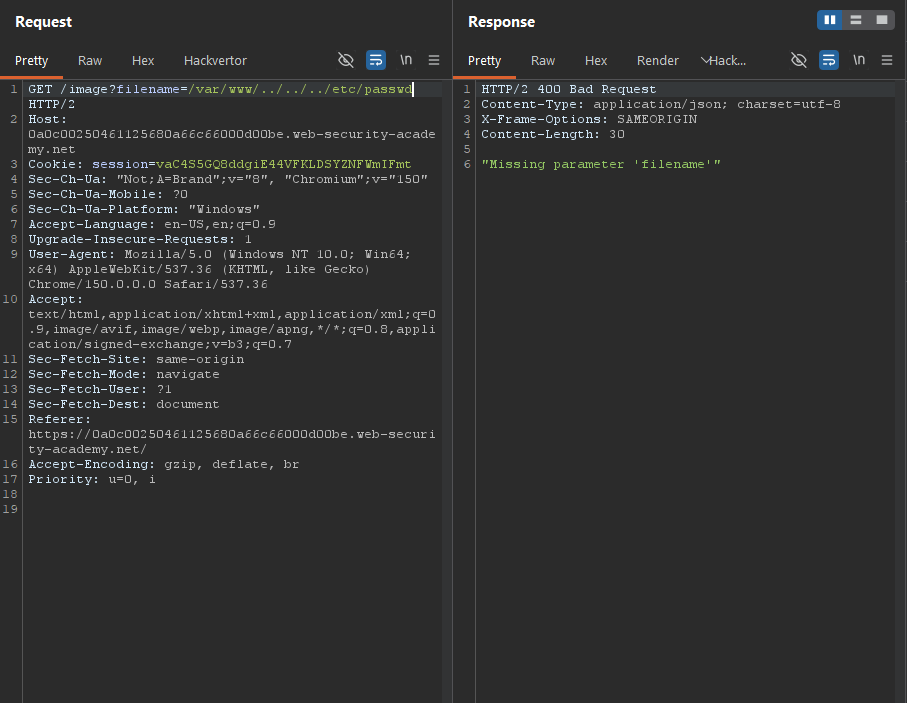

Next, I tried /var/www/../../../etc/passwd, thinking the application might expect the supplied path to begin with /var/www. However, the server still responded with "Missing parameter 'filename'".

image-20260724113346430

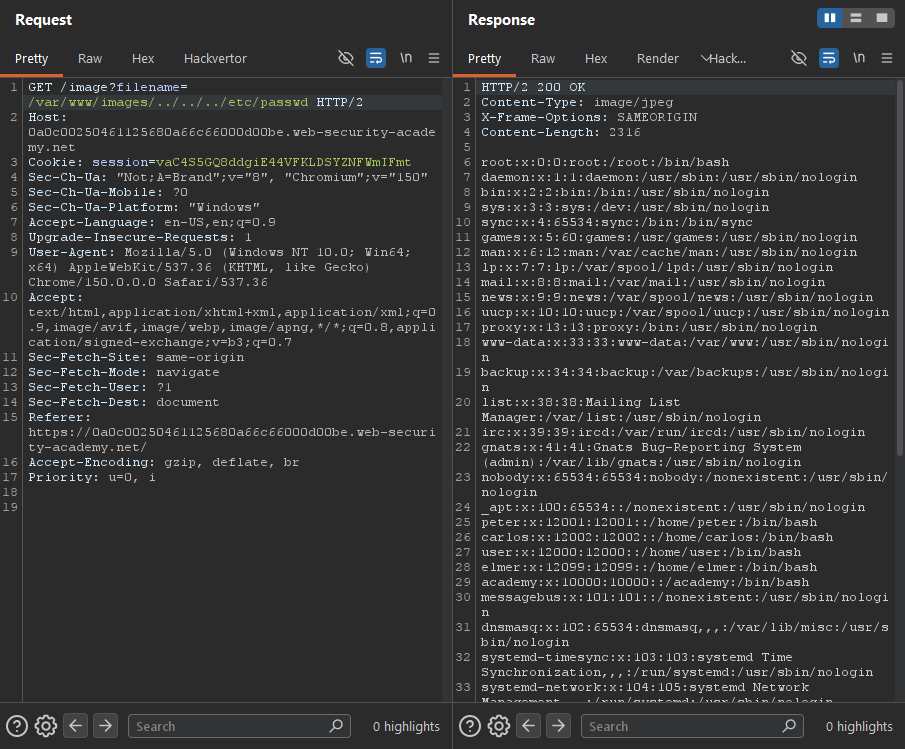

Finally, I tried /var/www/images/../../../etc/passwd, and this time the server returned the contents of the /etc/passwd file.

image-20260724113318720

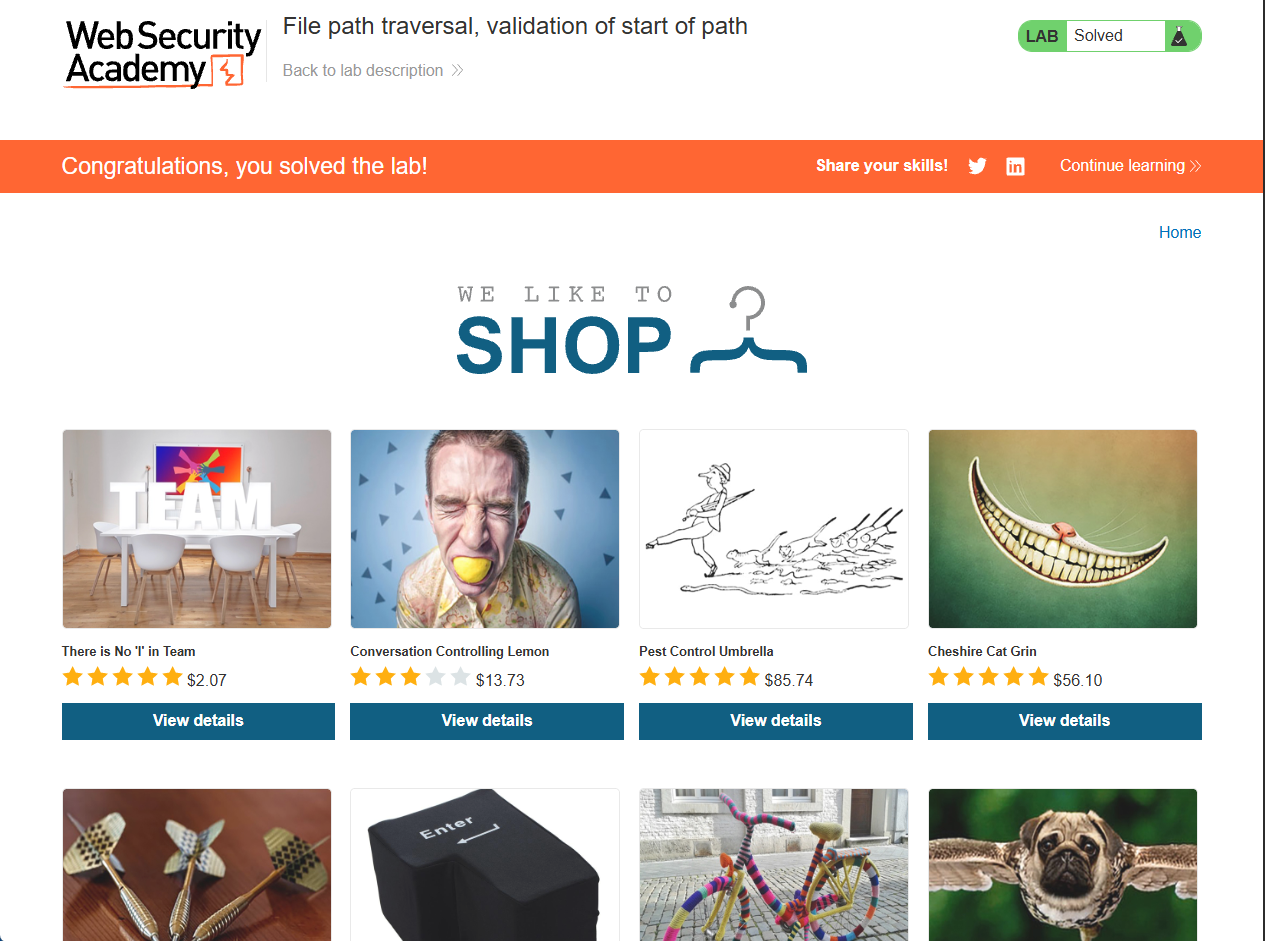

Solved!

image-20260724113356864
